HomeProductsLinear high-ceiling LED lamp

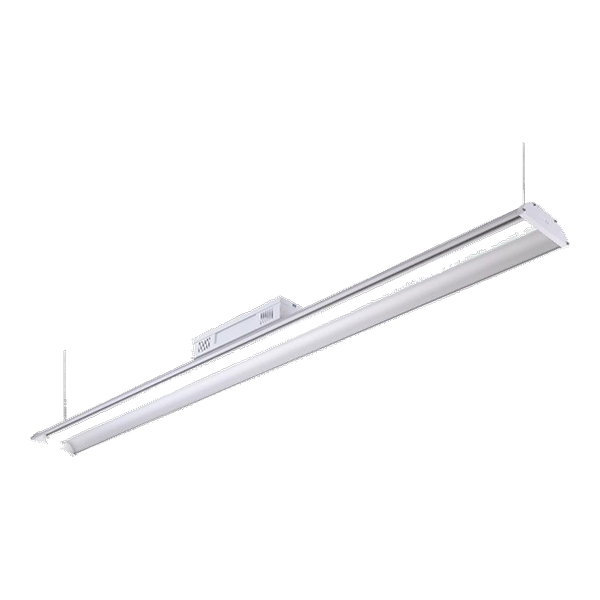

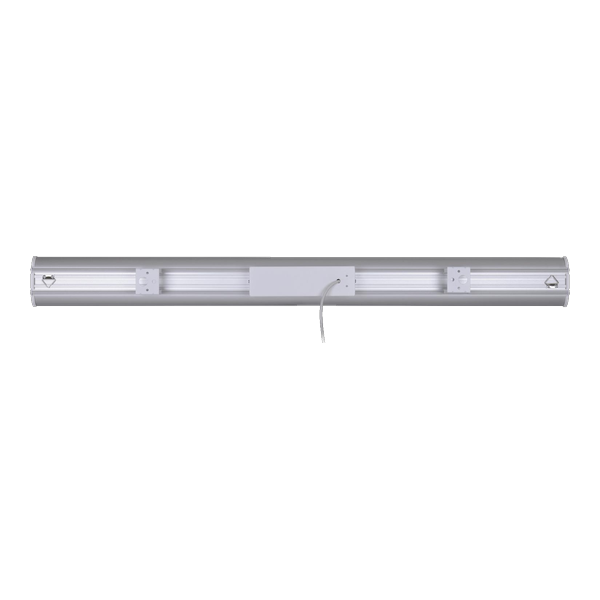

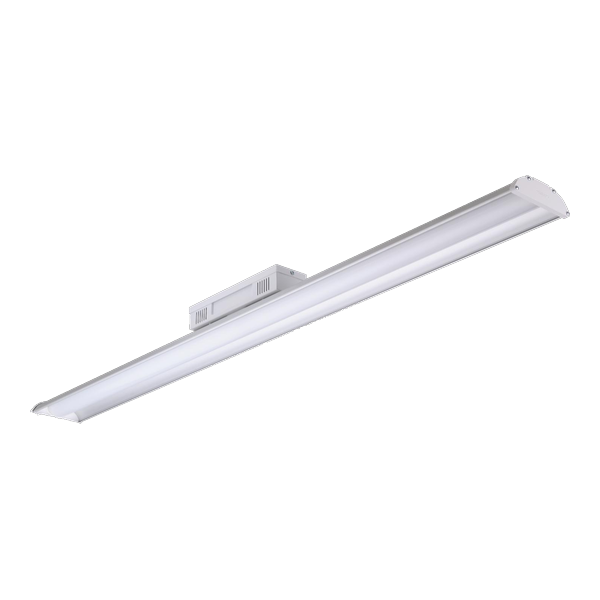

Linear high-ceiling LED lamp

This series of linear LED high bays is energy-efficient, environmentally friendly and highly cost-effective, and is widely used in various scenarios.

Power

40/70/115W

Efficacy

135Lm/W

Lifespan

50000h

Product Introduction

This series of linear LED high bays is energy-efficient, environmentally friendly and highly cost-effective, and is widely used in various scenarios. System efficiency reaches 118lm/W and saves up to 56% of energy compared with the traditional T5 high-ceiling solution. Three light distribution options are available: HRO high-shelf distribution that effectively illuminates high racks and aisles; WB wide distribution for uniform, consistent lighting; and an FR frosted cover for non-irritating, comfortable light. Lifespan is 50,000 hours. With the Philips LED module and efficient driver, the system ensures long-term performance stability. The linear design makes installation flexible.

Product Features

  • Precise light distribution: Effectively illuminates high racks and aisles with uniform, consistent light; the FR frosted cover provides comfortable lighting.
  • Reliable performance: All key Philips components and production processes ensure long-lasting, reliable performance.
  • Long-term use: The Philips LED module with efficient driver ensures long-term system performance and stability.

Main Application

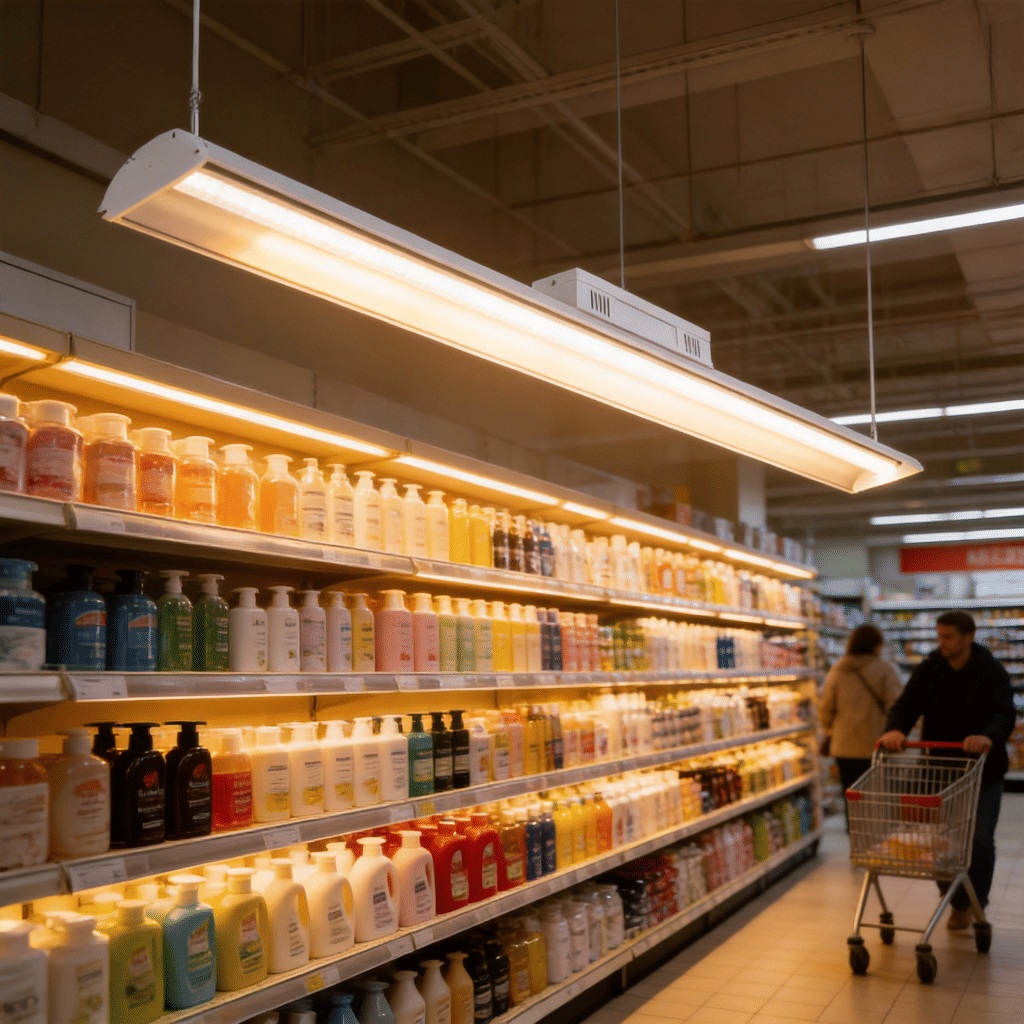

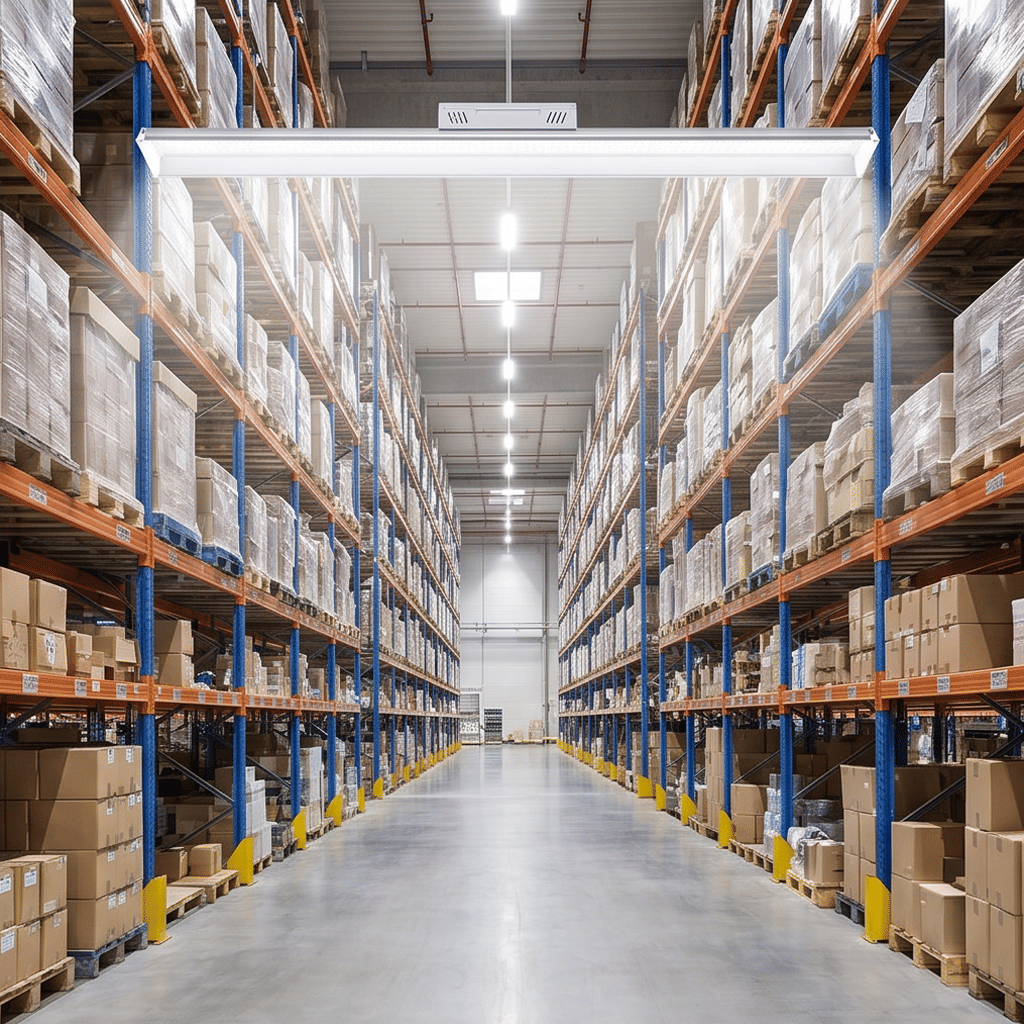

Mainly applied to industrial plants, warehouses, shopping malls, logistics centres, assembly lines, airports, stadiums and other places.

Technical Specifications

Model numberXYX-GC11 LED40 / XYX-GC11 LED70 / XYX-GC11 LED115
Power40W / 70W / 115W
Lighting effect135Lm/W
Size1318x125x98mm
Input voltage220-240V 50/60Hz
Colour temperatureCW (6500K) / NW (4000K); 4000K / 5000K / 6500K
Colour renderingRa≥80
Service life50,000 hours
Optical light distributionLens version (HRO; WB)
IP/IK ratingIP20 / IK03
Weight2.5kg
Installation methodPost-mounted, suspended, ceiling-mounted
