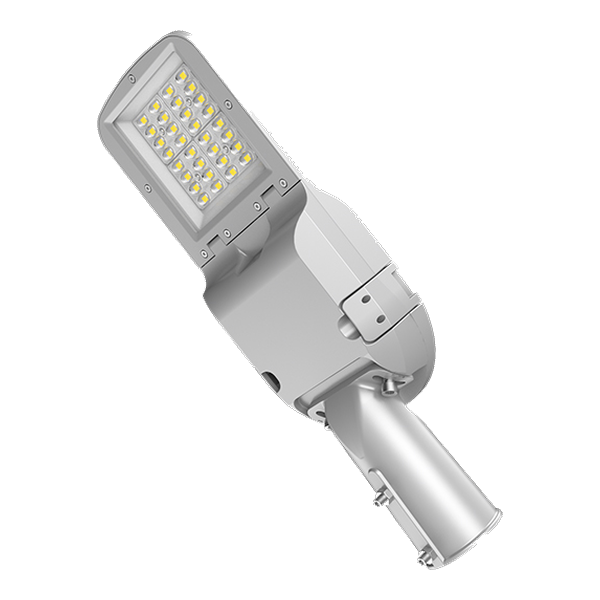

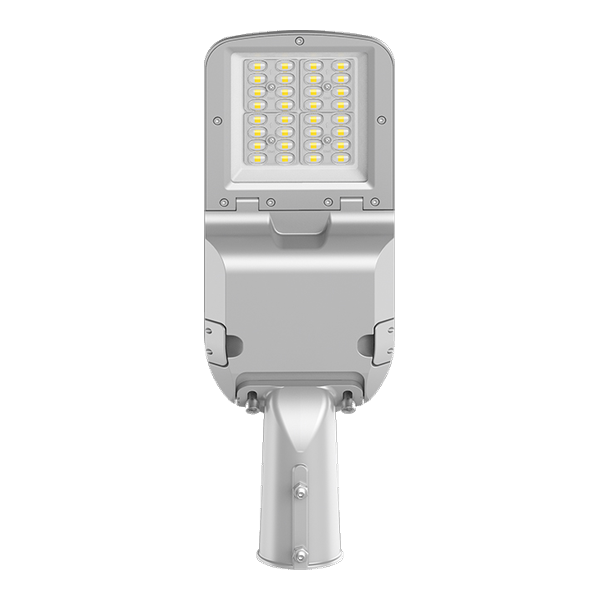

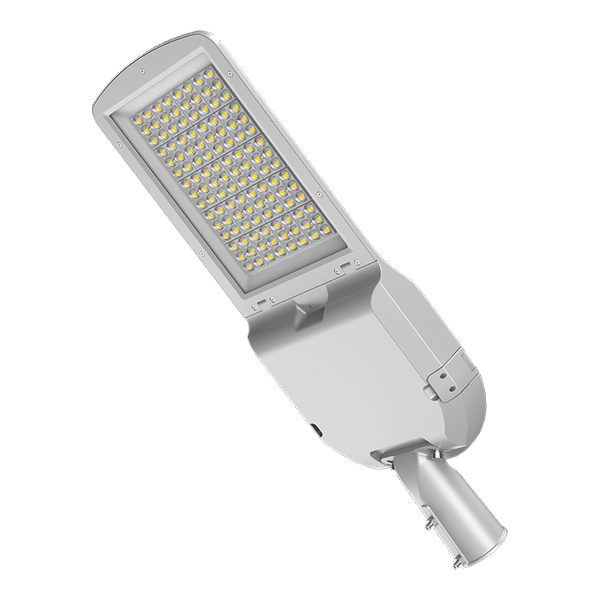

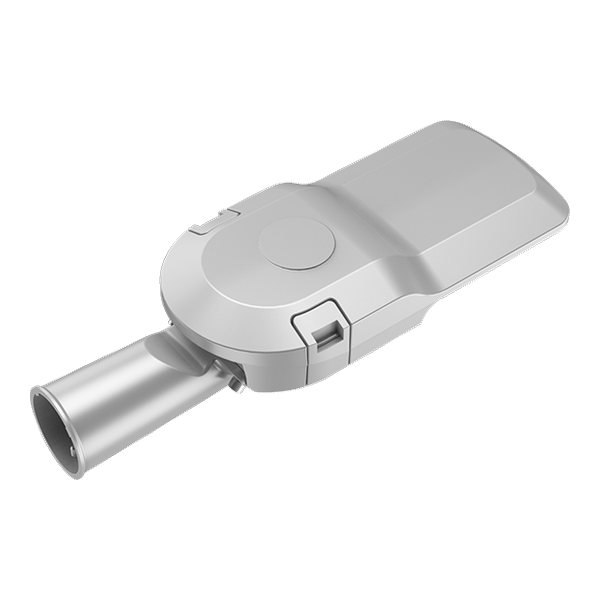

7B-Street light
The 7B street lamp is an energy-efficient LED road lighting product with high value for money, widely used in various scenarios.
Power
30-280W
IP Rating
IP65-IP66
Mounting
Pole or Wall
Product Introduction
The 7B street lamp is an energy-efficient LED road lighting product with high value for money, widely used in various scenarios. Optimised lens design delivers higher luminous efficacy. The light source and driver have a 50,000-hour lifespan; high-grade PC material is strongly enhanced against UV ageing and yellowing. All-aluminium die casting guarantees both housing strength and reliable heat dissipation.
Product Features
- Durable: 50,000-hour lifespan for the light source and driver; high-grade PC material strongly resists UV ageing and yellowing.
- High reliability: All-aluminium die casting guarantees housing strength while ensuring reliable heat dissipation.
Main Application
Mainly applied to expressways, urban elevated roads/expressways, main urban roads, industrial plant roads, commercial area roads and residential area roads.
Technical Specifications
| Model number | XYX-7B-50W / XYX-7B-75W / XYX-7B-100W / XYX-7B-150W / XYX-7B-250W |
| Power | 30-60W / 70-80W / 90-120W / 130-180W / 190-280W |
| Size | 493*174*108mm / 562*200*108mm / 607*240*108mm / 680*260*108mm / 766*300*108mm |
| Input voltage | AC100V-240V 50/60Hz |
| Lamp bead model | EMC 5050 / EMC 3030 |
| Chip configuration | Cree, Philips, Osram, Nichia, Samsung |
| Drive power supply | Mingwei, Philips, Maoshuo, Infineon, Xinzhaoyang |
| Power factor | 0.97 |
| Colour temperature | 3000K / 4500K / 6500K |
| Colour rendering | Ra≥80 |
| Protection level | IP65-IP66 |
| Luminaire lifespan | 30,000 hours |
| Installation method | Pole-mounted, wall-mounted |
