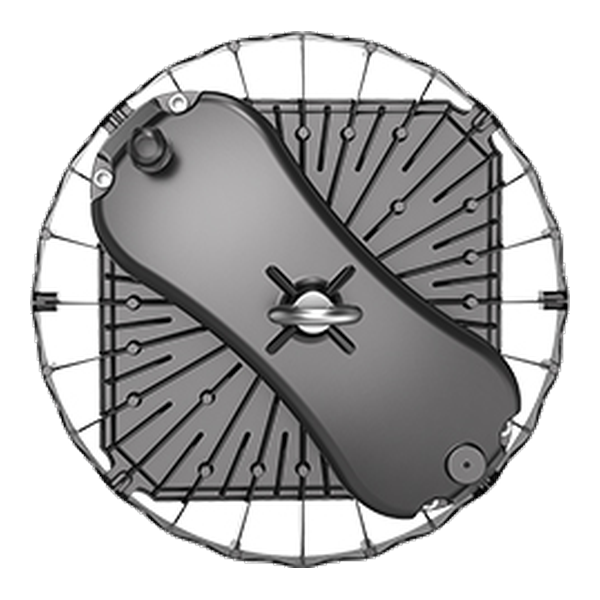

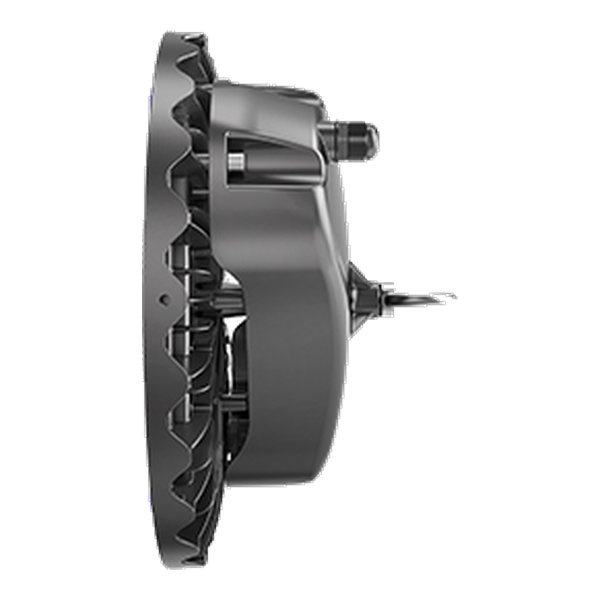

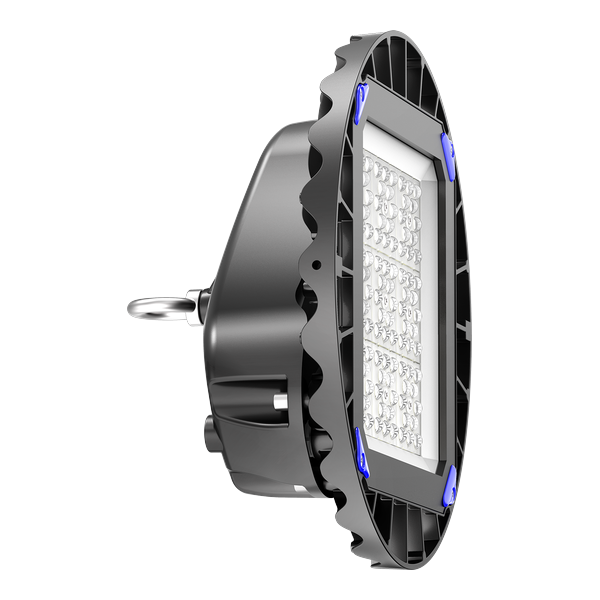

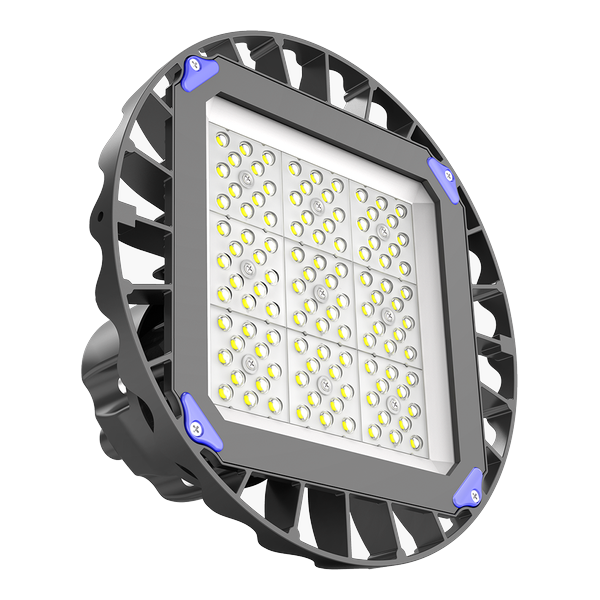

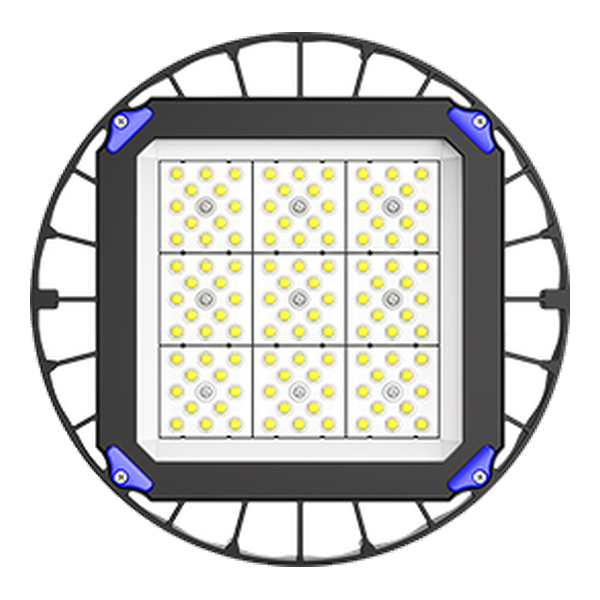

3rd generation UFO mining lamp
The third-generation UFO-style industrial high bay is an efficient, energy-saving and environmentally friendly lighting device, widely used in various…
Power
100/150/200W
CCT
3000/4500/6500K
IP Rating
IP65-IP66
Product Introduction
The third-generation UFO-style industrial high bay is an efficient, energy-saving and environmentally friendly lighting device, widely used in various scenarios. LED light beads deliver high energy efficiency and low energy consumption, significantly reducing energy consumption and operational costs. The lifespan is longer than that of traditional light sources, reducing the frequency of maintenance and replacement and lowering maintenance costs. It contains no harmful substances and is harmless to the environment, conforming to the concept of green environmental protection. LED industrial lighting fixtures adopt standard sizes and interfaces, making installation easy without special tools or skills.
Product Features
- Energy saving and eco-friendly: LED light beads deliver low energy consumption and long lifespan, conforming to the concept of green environmental protection.
- High safety: Unlike traditional light sources it generates no high temperature or electric sparks, improving safety in use.
- High reliability: Solid-state encapsulated light beads are hard to damage and offer high reliability.
Main Application
Mainly applied to industrial plants, large commercial buildings, sports venues and logistics warehouses.
Technical Specifications
| Model number | XYX-100W / XYX-150W / XYX-200W |
| Power | 100W / 150W / 200W |
| Size | 290*290*120mm / 330*330*125mm / 330*330*125mm |
| Weight | 2.5kg / 3kg / 3kg |
| Input voltage | AC100V-240V 50/60Hz |
| Lamp bead model | EMC 5050 / EMC 3030 |
| Chip configuration | Cree, Philips, Osram, Nichia, Samsung |
| Drive power supply | Mingwei, Philips, Maoshuo, Infineon, Xinzhaoyang |
| Power factor | 0.97 |
| Colour temperature | 3000K / 4500K / 6500K |
| Colour rendering | Ra≥80 |
| Protection level | IP65-IP66 |
| Luminaire lifespan | 30,000 hours |
| Installation method | Hooks, suspension rods, wall-mounted |
